FC100-5LT-1-H

Dispensing, Potting

Benchtop Dispense System

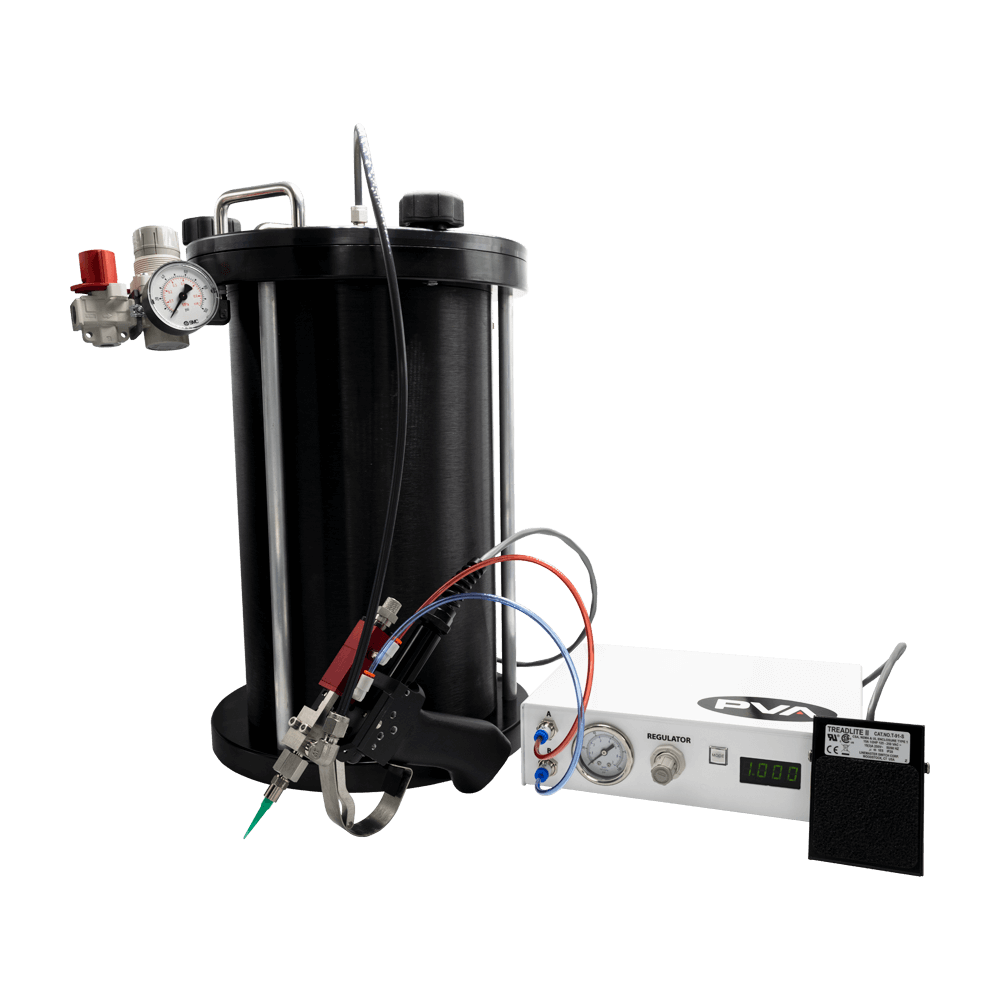

This complete manual dispense system is typically used for handheld dispensing and potting applications. It utilizes the FC100 dispense valve mounted to an electric trigger to activate the ST100 valve controller. The valve controller can be set in Manual mode to apply fluid for the duration the trigger is depressed or Timed mode for single pulse repeatable volumes.

Supplied with a 5-liter pressure tank, it can hold most industry standard 5-liter or 1-gallon bottles/cans, eliminating the need to pour fluid into a tank which can introduce moisture and air.
Complete systems are supplied with all necessary fluid and air fittings and tubing (6 ft) to operate out of the box.

The FC100-5LT-1-H has many additional integrated features including:

  • Ability to dispense manual or timed volumes
  • Hand trigger activation
  • Handheld adhesive or potting dispense system

Also available for purchase is the FC100 Spare Parts Kit which includes all the necessary replacement parts for your valve.
