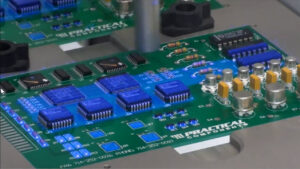

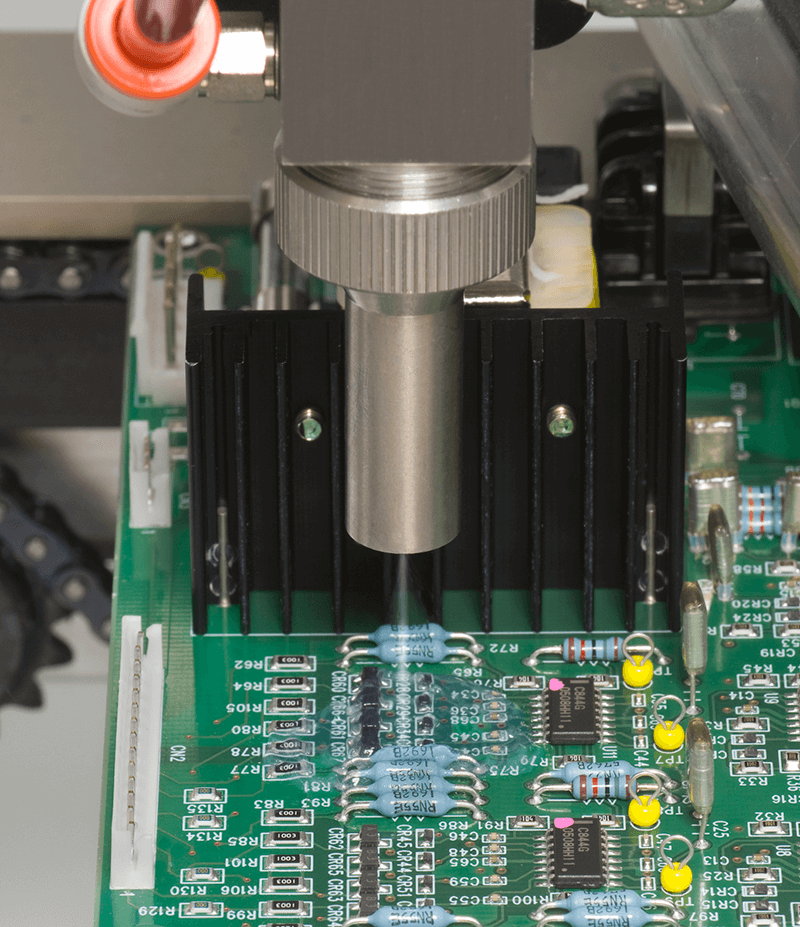

FCS300-ES Series


Stainless Steel Extended Spray Valve

The FCS300-ES extended spray valve provides a repeatable, concentrated coating film in circular pattern widths ranging from 0.125” to 0.5”. The atomized spray process resulting from the FCS300-ES will produce excellent edge definition and coating transfer efficiencies in excess of 99%. The FCS300-ES features a micrometer flow adjustment that makes fine tuning your process easier than ever.

The FCS300-ES has many integrated features including:

  • Low pressure, low volume atomized process
  • 300 series stainless steel fluid body for superior material compatibility
  • Micrometer flow adjustment with lock nut
  • Divorced valve design prevents material contamination of the air section
  • Compatible with all commercially available conformal coatings
  • Wide viscosity range offers versatility for virtually any spray application

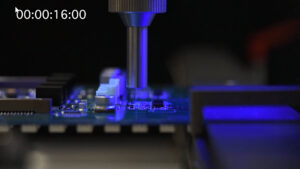

FCS300-ES-ND

Stainless Steel Extended Spray Valve, Narrow Diameter

Also available for purchase are the FCS300-ES and FCS300-ES-ND Spare Parts Kits which include all the necessary replacement parts for your valve.
