MCCS-SYS-5


Manual Conformal Coating System

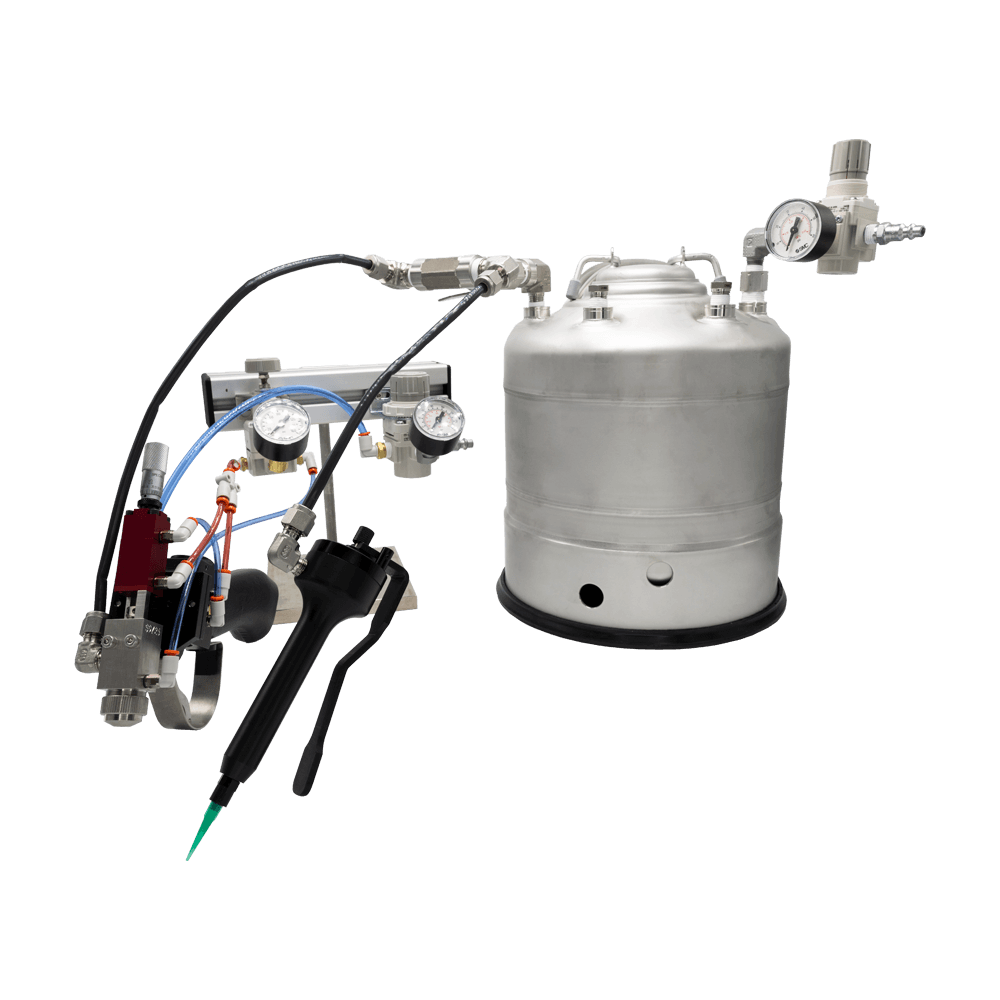

This complete manual conformal system combines one FCS300-R atomized spray valve to apply fluid over a large area and one CAM200 lever activated diaphragm dispense valve for detailed application of beads close to keep out areas. Both applicator technologies are typically used in a selective conformal coating station to achieve the best results. The spray valve is mounted to a pneumatic trigger handle for independent activation of the spray or lever activated dispense valve, making it easy for the operator to switch between application methods.

Supplied with a 2-gallon stainless steel pressure tank, compatible fluids can be poured into the tank through the oval opening in the lid, which will supply fluid to both valves.

Complete systems are supplied with all necessary fluid and air fittings and tubing (6 ft) to operate out of the box.

The MCCS-SYS-5 has many additional integrated features including:

  • Low volume, low pressure atomized spray valve for manual conformal coating of PCBs
  • Dispense valve with outlet for luer lock needles

Also available for purchase are the FCS300-R Spare Parts Kit and the CAM200 Spare Parts Kit which include all the necessary replacement parts for your valves.
